EQ16 |

Super-Duty Tandem Axle Equipment Hauler

EQ16

OrangeLine EQ16
EQ16 Learn More +
Super-Duty Tandem Axle Equipment Hauler
Length 17′ + 3′
Width 83″
GVWR Rating 17,500#
Empty Weight 3,710#
Payload Weight 13,790#
Length 17′ + 3″
Width 83”
GVWR Rating 17,500#
Empty Weight 3,710#
Payload Weight 13,790#
Frame 8″ Channel
Cross Members 3″ Channel
Front Stop Rail Square Tubing Front Stop Rail
Dovetail 3′ Cleated Dovetail
Coupler Adjustable, 2-5/16″ Demco EZ Latch Coupler
Jack 12,000# Side Wind, Set-Back Jack w/ Drop Leg
Fenders Removable 9″ x 72″ Double-Broke Diamond Plate Steel
Axles 8,000# D80N Axles w/ Oil Bath Hubs
Brakes Electric Brakes on All Hubs
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tires ST215/75 R-17.5 Load Range H
Wheels 17.5″ x 6.75″; White Mod, 8-Lug
Decking 2” Treated Pine

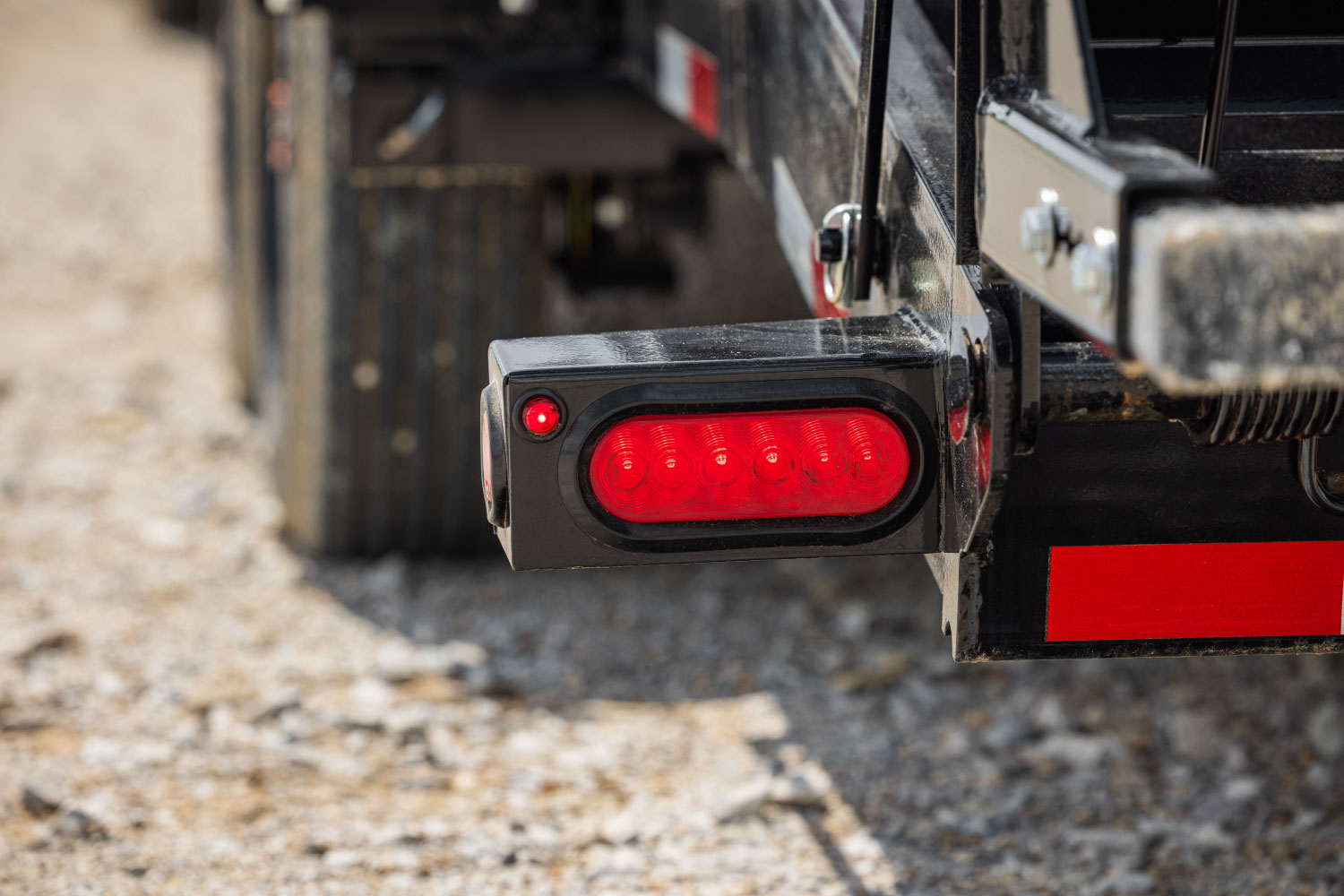

Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Sealed, Modular Wiring Harness
Rampgate 5’ Tall Heavy-Duty Stand-Up Ramps

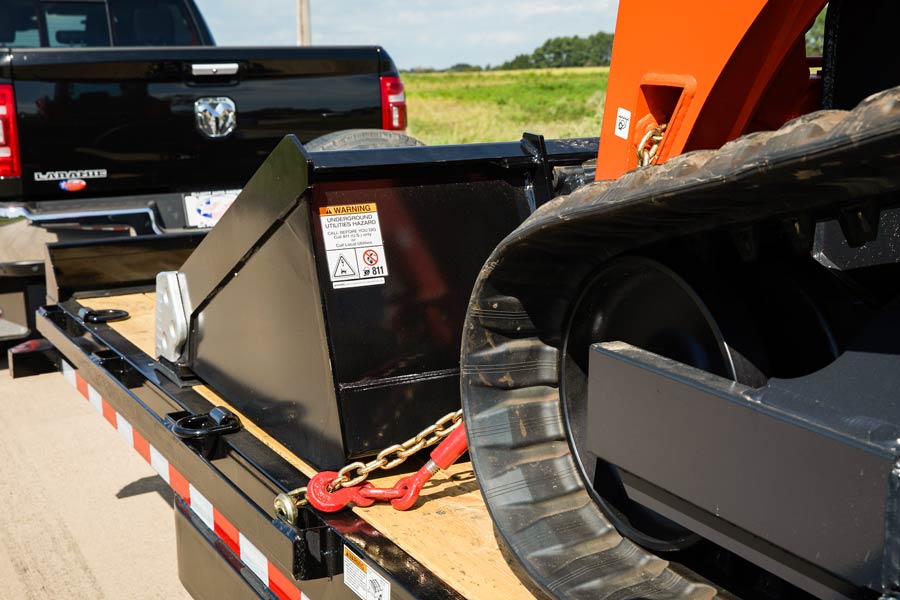

Cargo Control Rubrail & Tie-Down Pockets Along Sides + (6) D-Rings
