EQ14 |

Heavy-Duty Tandem Axle Equipment Hauler

EQ14

OrangeLine EQ14
EQ14 Learn More +
Heavy-Duty Tandem Axle Equipment Hauler
Length 17′ + 3″
Width 83″
GVWR Rating 17,500#
Empty Weight 2,950#
Payload Weight 14,550#
Length 17’ + 3”
Width 83”
GVWR Rating 14,000#
Empty Weight 2,950#
Payload Weight 11,050#
Frame 6” Channel
Cross Members 3” Channel
Front Stop Rail Square Tubing Front Stop Rail
Dovetail 3’ Cleated Dovetail
Coupler Adjustable, 2-5/16” Demco EZ Latch Coupler

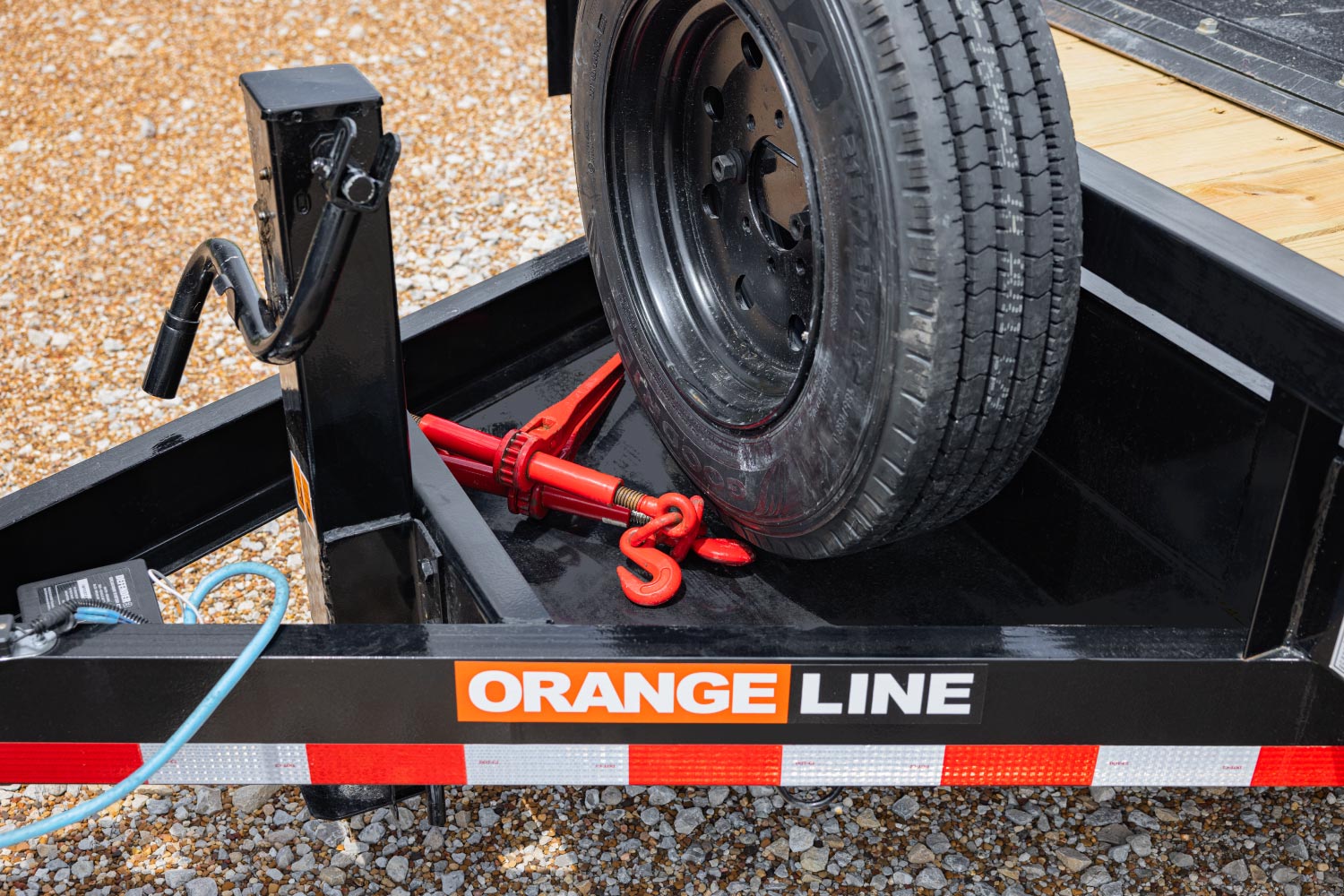

Jack 12,000# Side Wind, Set-Back Jack w/ Drop Leg
Fenders Removable 9” x 72” Double-Broke Diamond Plate Steel
Axles Dexter Brand, 7,000# Axles w/ EZ Lube Hubs
Brakes Nev-R-Adjust Electric Brakes on All Hubs
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tires ST235/80 R-16 Load Range E
Wheels 16” x 6”; White Mod, 8-Lug
Decking 2” Treated Pine

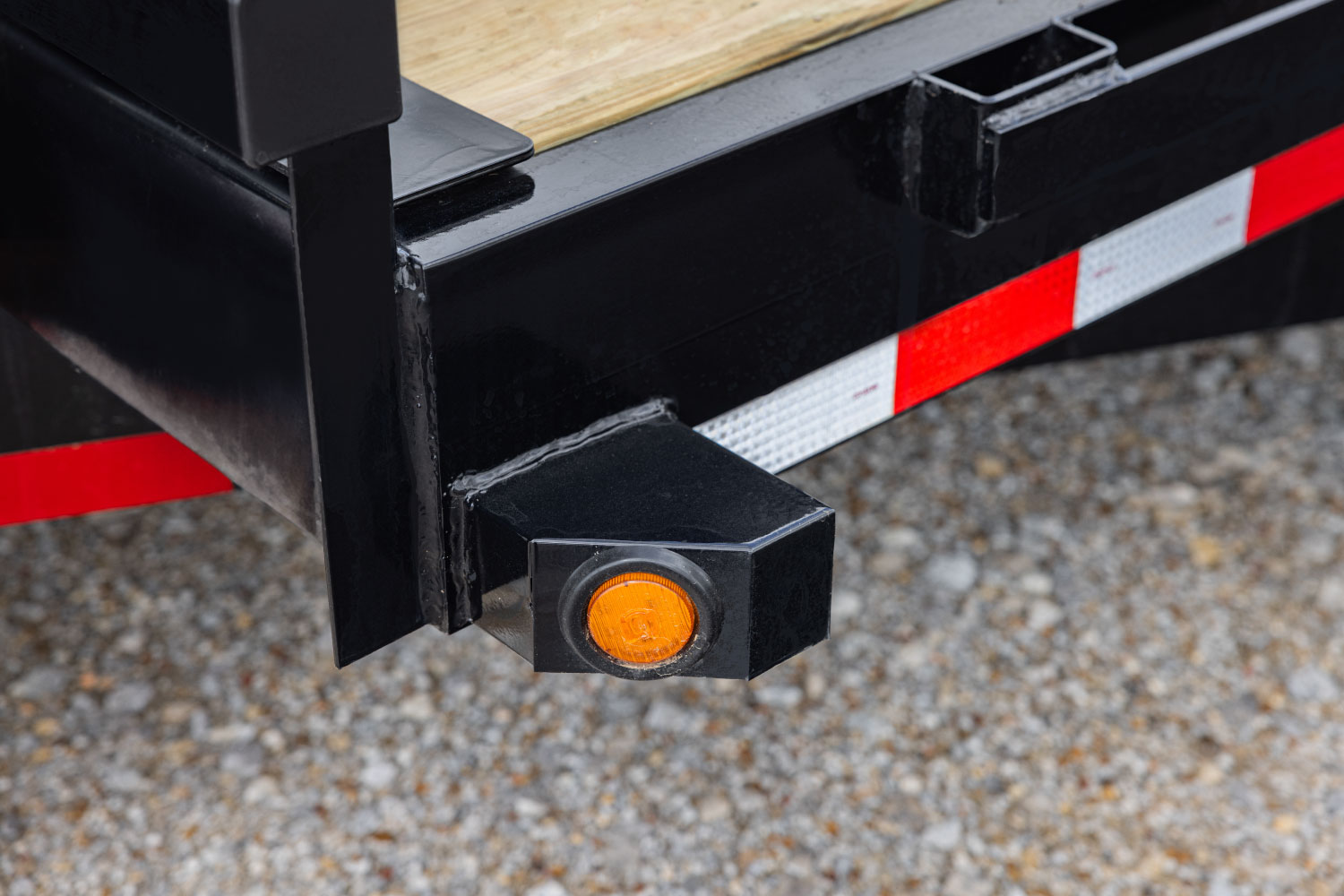

Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Sealed, Modular Wiring Harness

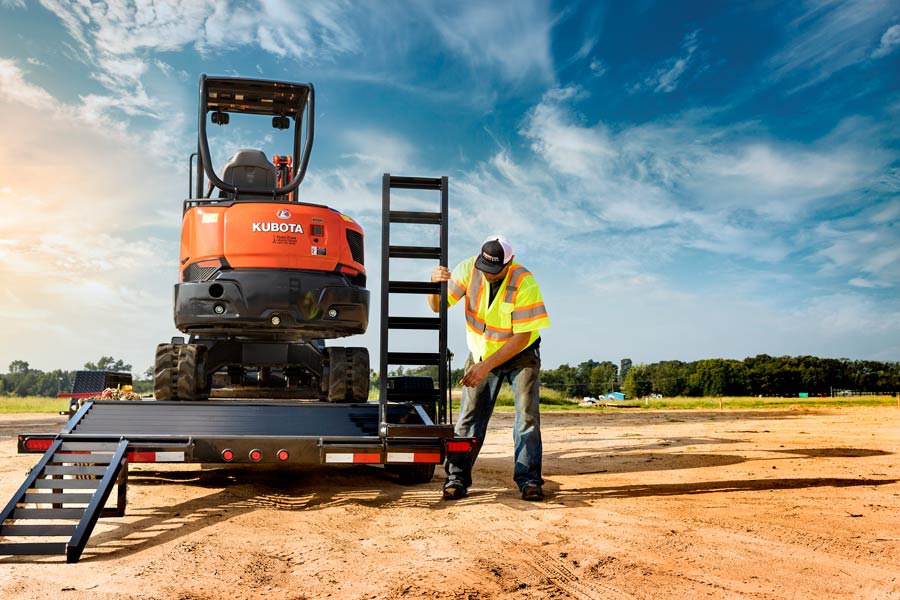

Ramps 4’ Tall Knee Ramps

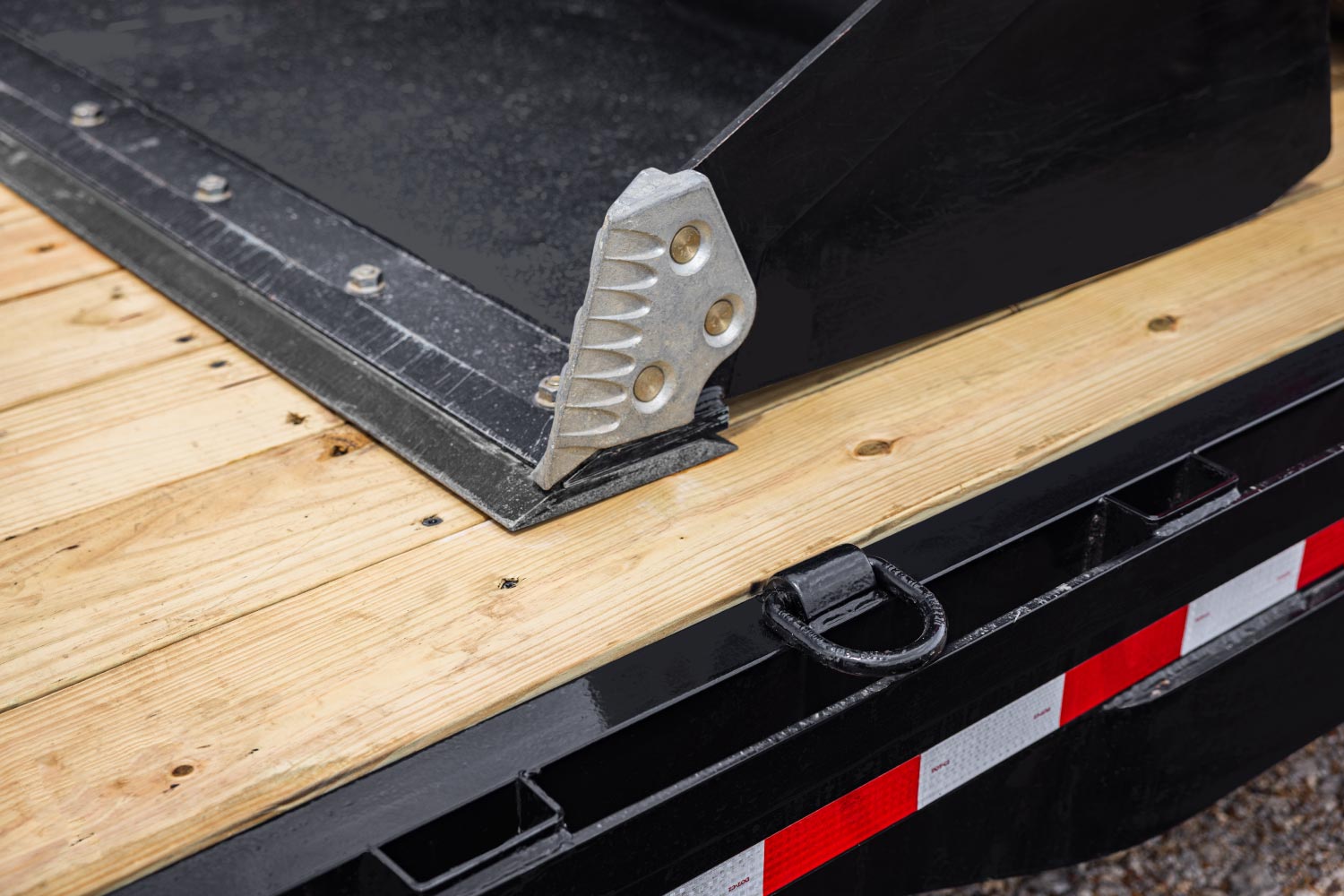

Cargo Control Rubrail & Tie-Down Pockets Along Sides + (6) D-Rings
