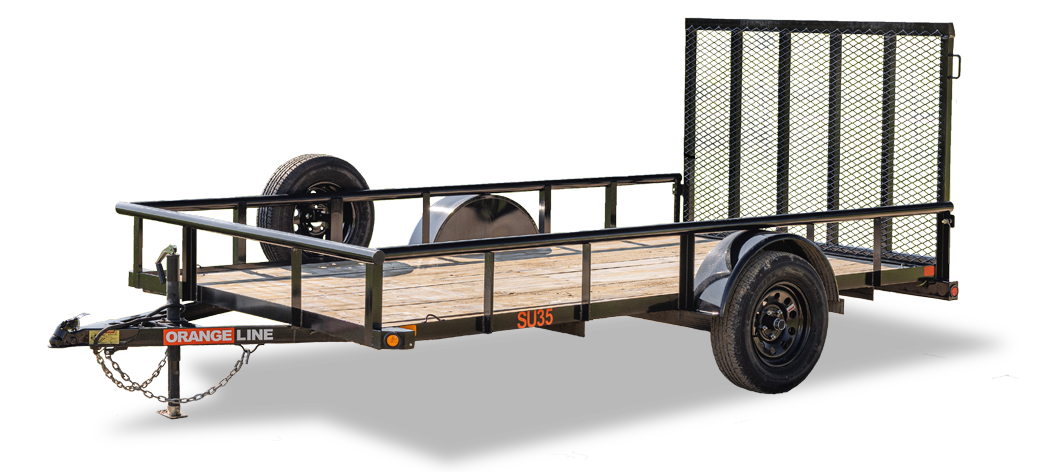

SU35 |
Single-Axle Utility Trailer
| Length | 12’ | 14’ |
| Width | 77” |
| GVWR Rating | 2,995# |
| Empty Weight | 1,080# | 1,170# |
| Payload Weight | 1,915# | 1,825# |
| Frame | 3” x 2” x 3/16” Angle |
| Cross Members | 3” x 2” x 3/16” Angle |
| Top Rail | 2-3/8″ OD Pipe Top Rail |
| Uprights | 2” x 2” Angle |

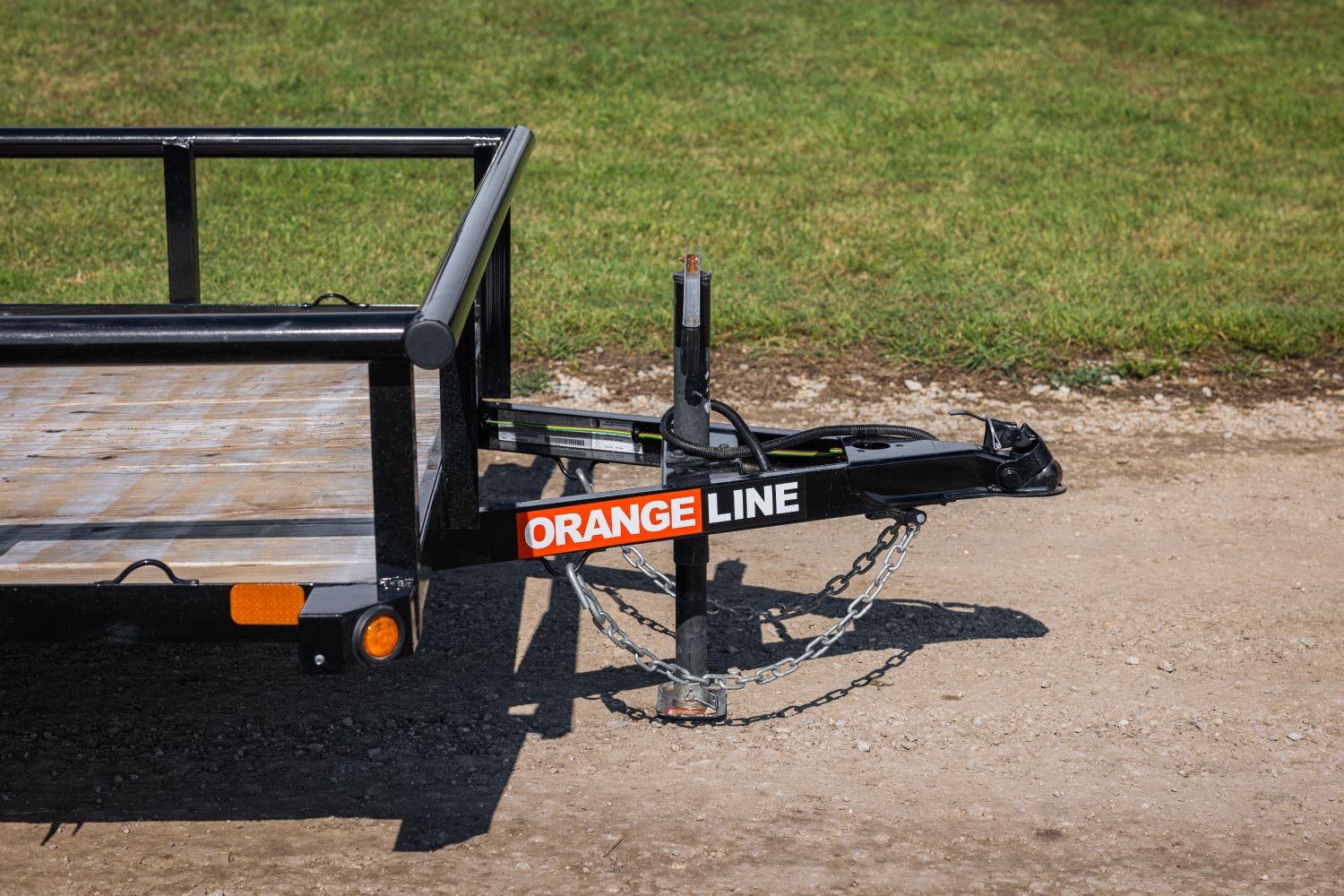

| Coupler | 2” A-Frame |

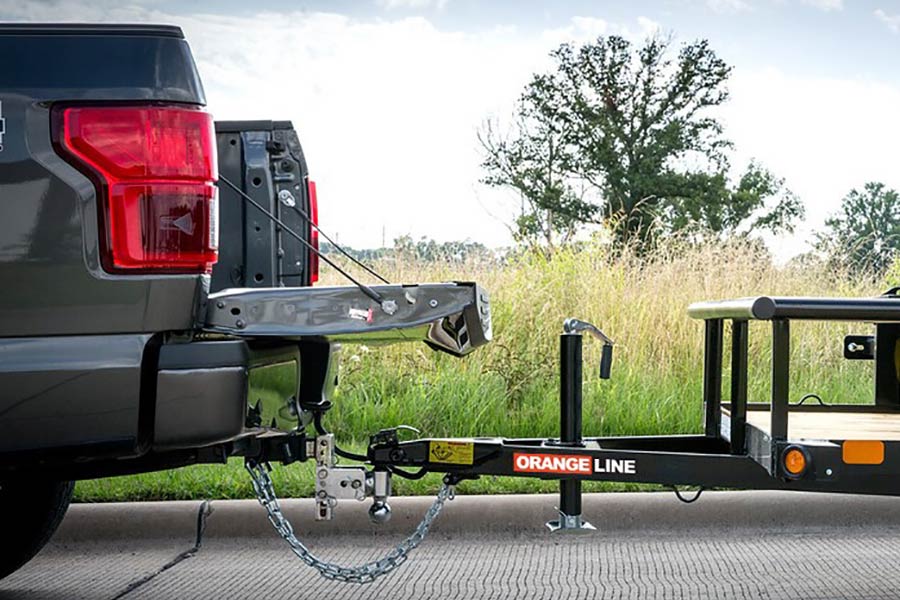

| Jack | 2,000# Top Wind, Set-Back Jack w/ Removable Sand Foot |
| Fenders | 9” x 32” Rolled Steel w/ Back |
| Axle | Dexter Brand, 3,500# Axle w/ EZ Lube Hubs |
| Brakes | None |
| Suspension | Multi-Leaf Spring |
| Tires | ST205/75R-15 Load Range C |
| Wheels | 15” x 5”; White Mod, 5 on 5 Bolt Pattern |
| Decking | 2” Treated Pine |
| Lights | Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Electric Plug | 4-Way Flat w/ Loom |
| Wiring | Protected Wiring Package |

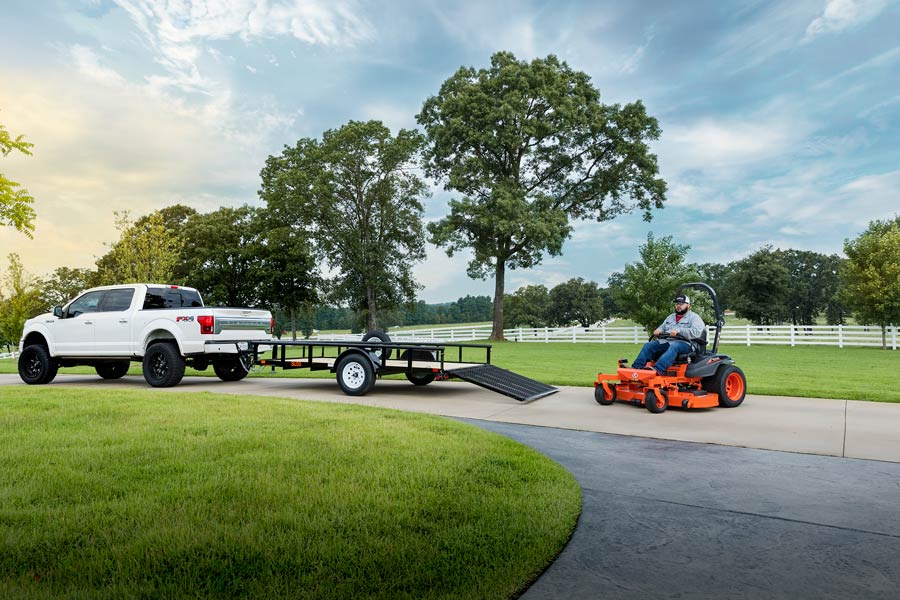

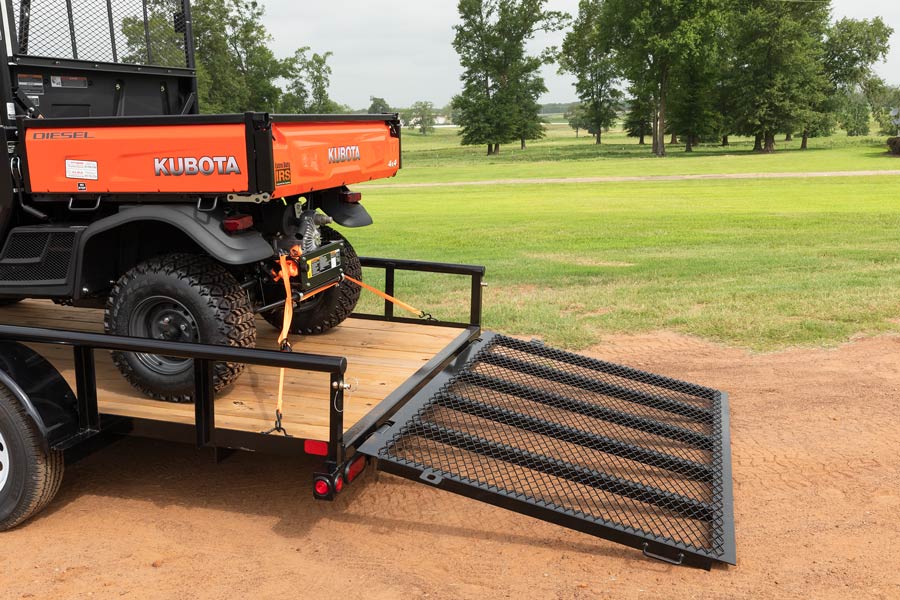

| Rampgate | 4’ Tall Rear Rampgate w/ Coil-Spring Assist |
| Cargo Control | (4) Tie Down Loops Inside Bed |
