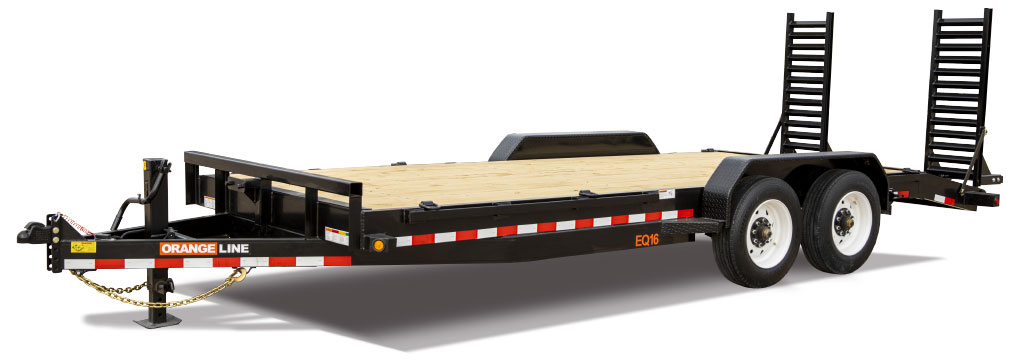

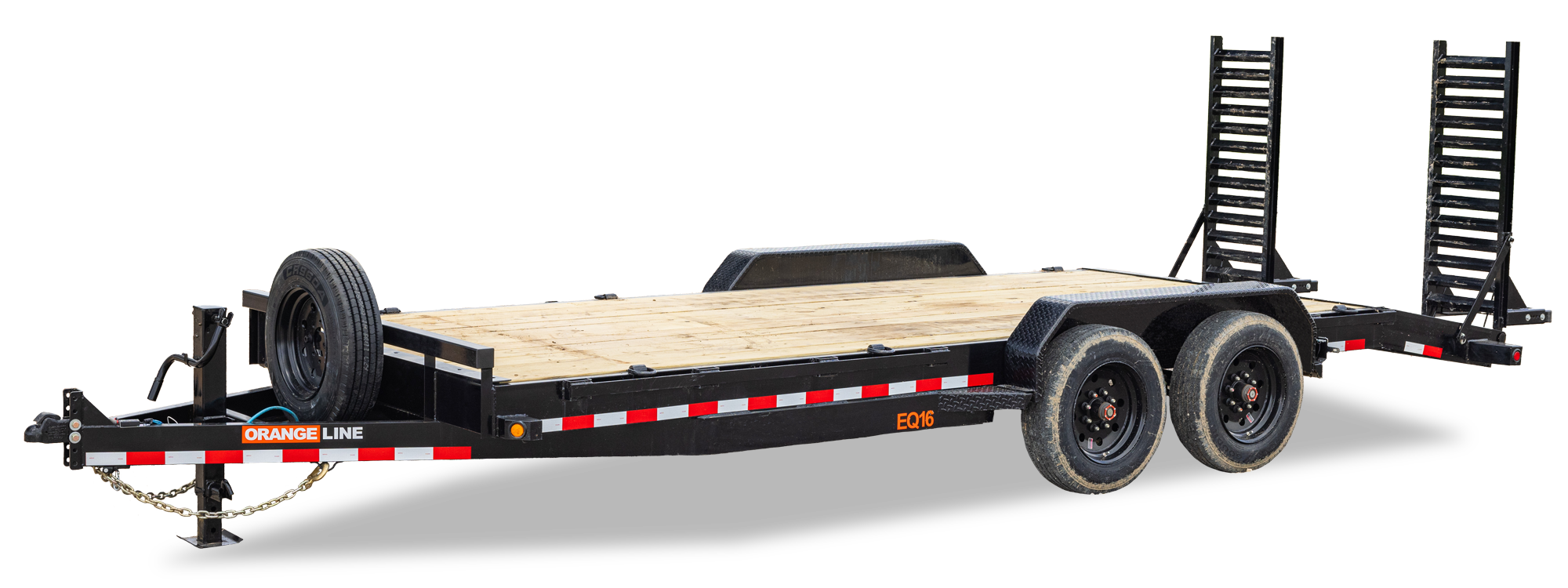

EQ Series |

Tandem-Axle Equipment Haulers

Super-Duty Strength for Commercial Equipment

The super-duty EQ Series is ideal for hauling Kubota Commercial Equipment models. Every EQ trailer features a heavy-duty channel-iron frame with wrapped tongue to support larger weight capacities, and an open-side design that lends versatility for rear or side deck access. A cleated dovetail and rear stand-up ramps make for easier loading/unloading, while full-length rubrails with stake pockets and 6 D-rings aid in securing all types of cargo and equipment.

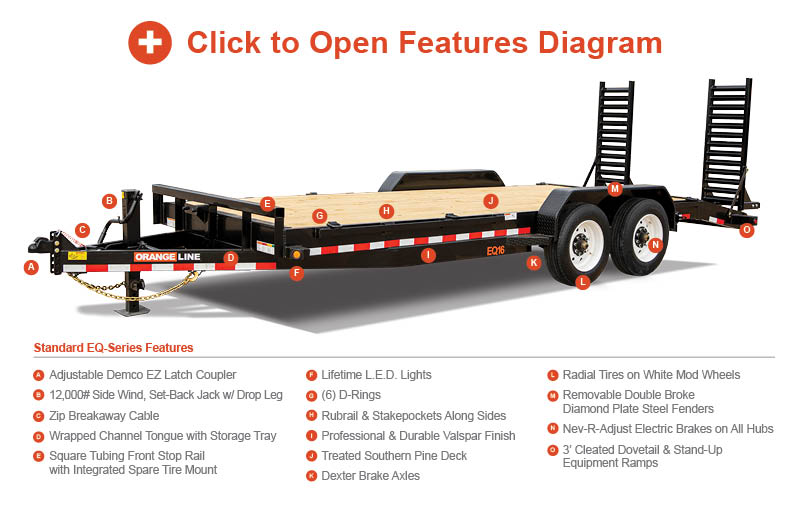

Standard EQ-Series Features

+ Click/Hover on the Letter to Reveal Feature

A
Adjustable Demco EZ Latch Coupler
B
12,000# Side Wind, Set-Back Jack w/ Drop Leg
C
Zip Breakaway Cable
D
Wrapped Channel Tongue with Storage Tray
E
Square Tubing Front Stop Rail with Integrated Spare Tire Mount
F
Lifetime L.E.D. Lights
G
(6) D-Rings
H
Rubrail & Stakepockets Along Sides
I
Professional & Durable Valspar Finish
J
Treated Southern Pine Deck
K
Dexter Brake Axles
L
Radial Tires on White Mod Wheels
M
Removable Double Broke Diamond Plate Steel Fenders
N
Nev-R-Adjust Electric Brakes on All Hubs
O
3’ Cleated Dovetail & Stand-Up Equipment Ramps

A Adjustable Demco EZ Latch Coupler
B 12,000# Side Wind, Set-Back Jack w/ Drop Leg
C Zip Breakaway Cable
D Wrapped Channel Tongue with Storage Tray
E Square Tubing Front Stop Rail with Integrated Spare Tire Mount

F Lifetime L.E.D. Lights
G (6) D-Rings
H Rubrail & Stakepockets Along Sides
I Professional & Durable Valspar Finish
J Treated Southern Pine Deck

K Dexter Brake Axles
L Radial Tires on White Mod Wheels
M Removable Double Broke Diamond Plate Steel Fenders
N Nev-R-Adjust Electric Brakes on All Hubs
O 3’ Cleated Dovetail & Stand-Up Equipment Ramps

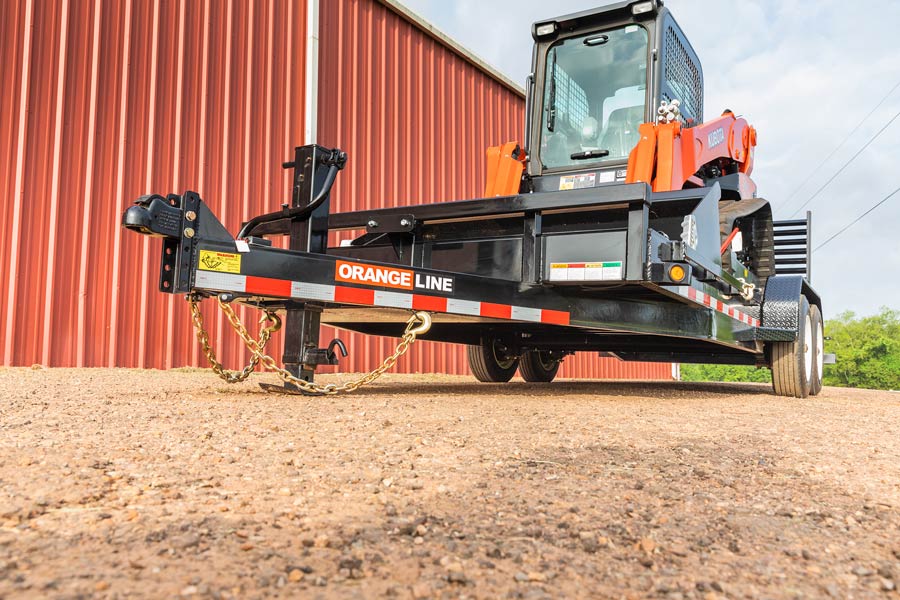

High-tensile channel iron frame design provides long-lasting performance.

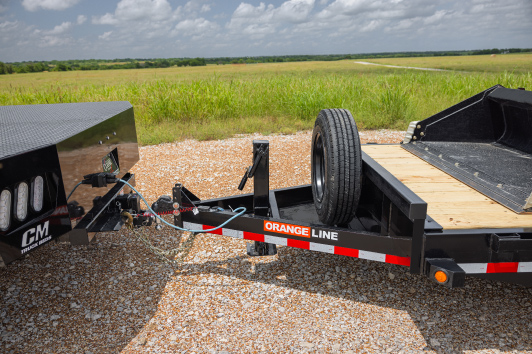

Integrated storage tray in tongue provides storage solutions.

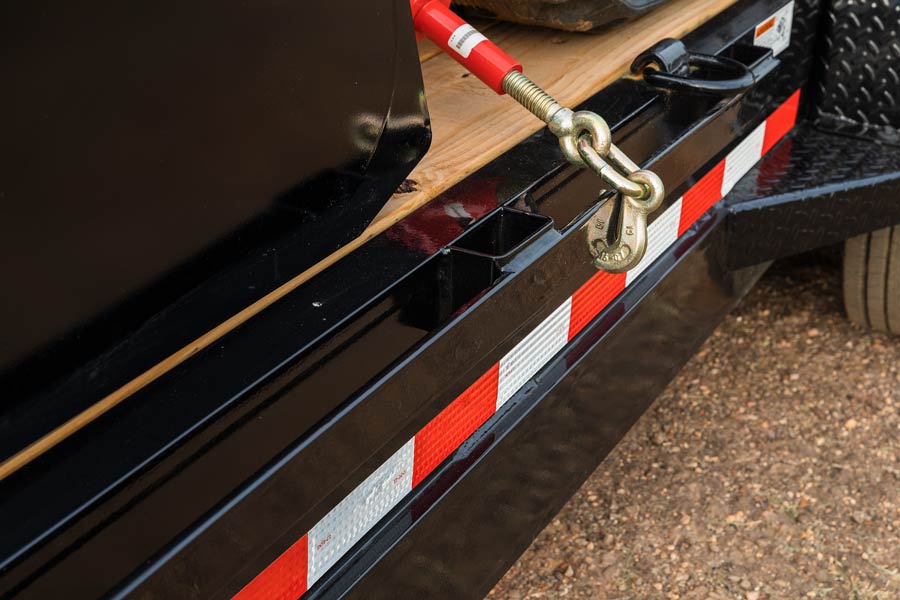

Full-length rubrail & stake pockets as well as (6) D-rings for optimal cargo control and tie-down options.

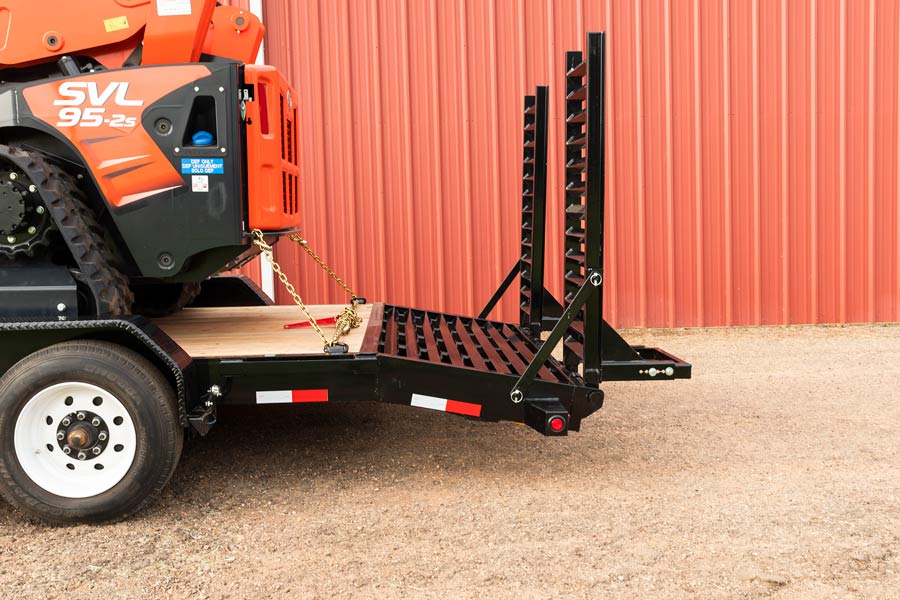

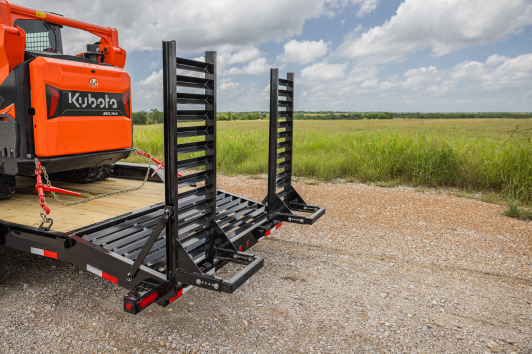

Cleated dovetail and stand-up equipment ramps allow for a low loading angle of equipment.

EQ Series Models

EQ14

OrangeLine EQ14
EQ14 Learn More +
Heavy-Duty Tandem Axle Equipment Hauler
Length 17′ + 3″
Width 83″
GVWR Rating 17,500#
Empty Weight 2,950#
Payload Weight 14,550#

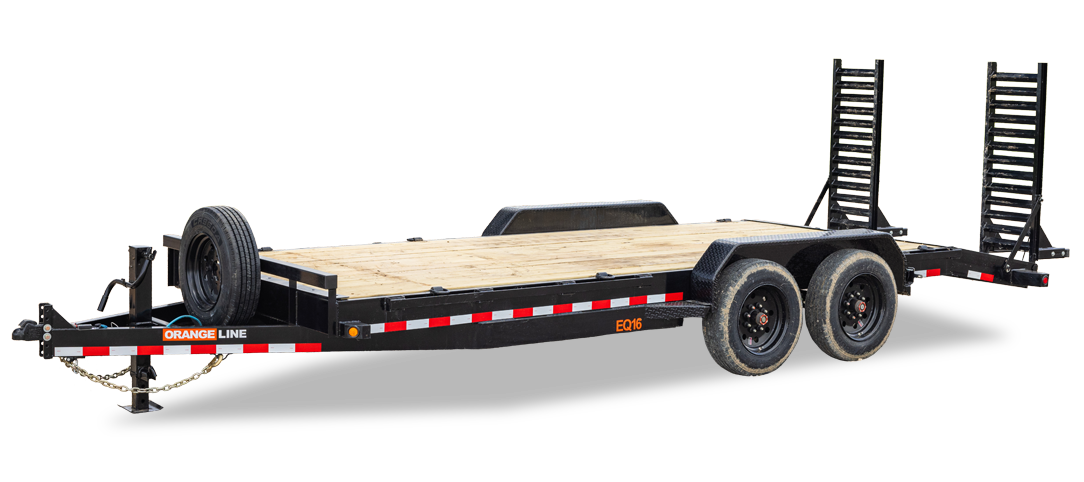

EQ16

OrangeLine EQ16
EQ16 Learn More +
Super-Duty Tandem Axle Equipment Hauler
Length 17′ + 3″
Width 83″
GVWR Rating 17,500#
Empty Weight 3,710#
Payload Weight 13,790#
