TH10 |

Pro Series Tandem Axle, Pipe Top Utility Trailer

TH10

OrangeLine TH10
TH10 Learn More +
Pro Series Tandem Axle, Pipe Top Utility Trailer
Length 20′
Width 83″
GVWR Rating 9,990#
Empty Weight 2,280#
Payload Weight 7,710#
Length 20’
Width 83”
GVWR Rating 9,990#
Empty Weight 2,280#
Payload Weight 7,710#
Frame 6” x 3-1/2” x 5/16” Angle
Cross Members 3” x 2” x 3/16” Angle
Front Stop Rail Square Tubing Front Stop Rail

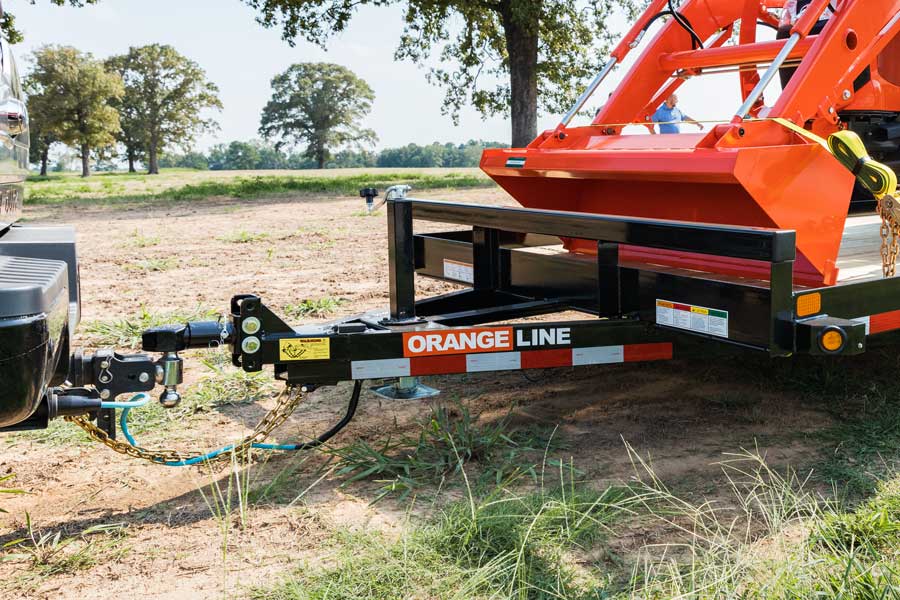

Coupler Adjustable, 2-5/16” Forged Coupler

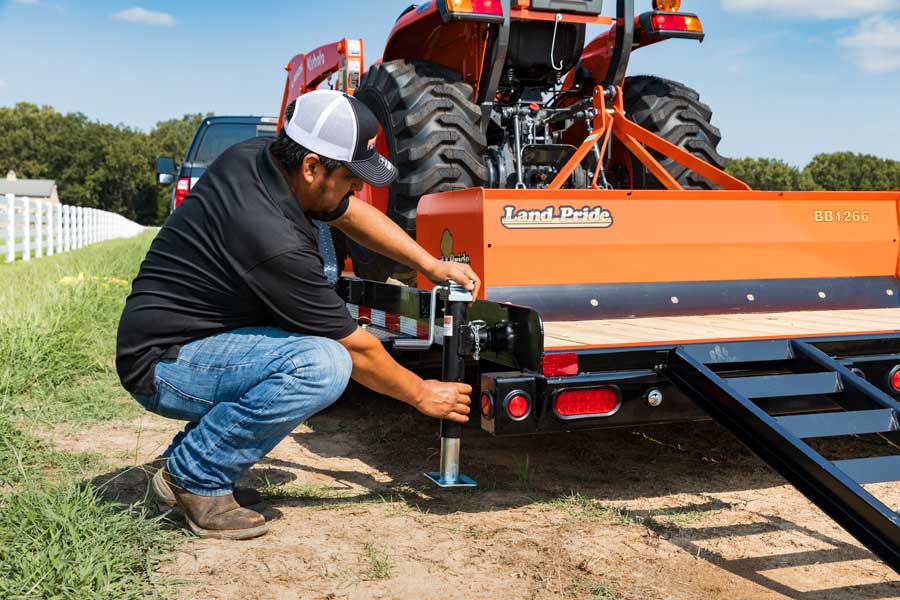

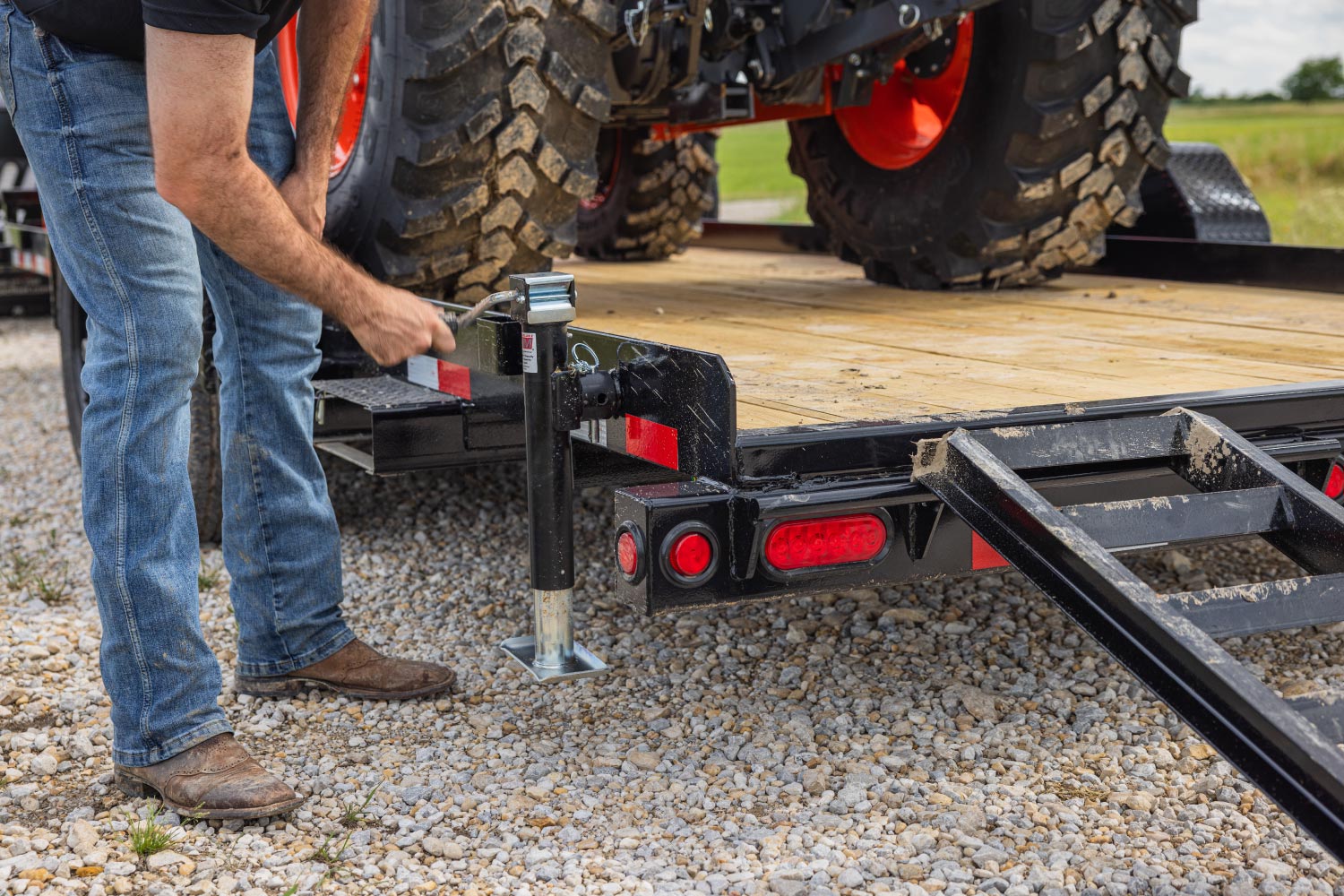

Jack 8,000# Top Wind, Set-Back Jack w/ Drop Leg
Fenders Removable 9” x 72” Double-Broke Diamond Plate Steel
Axles 5,200# Axles w/ EZ Lube Hubs
Brakes Electric Brakes on All Hubs
Suspension Multi-Leaf Spring w/ Equalizer

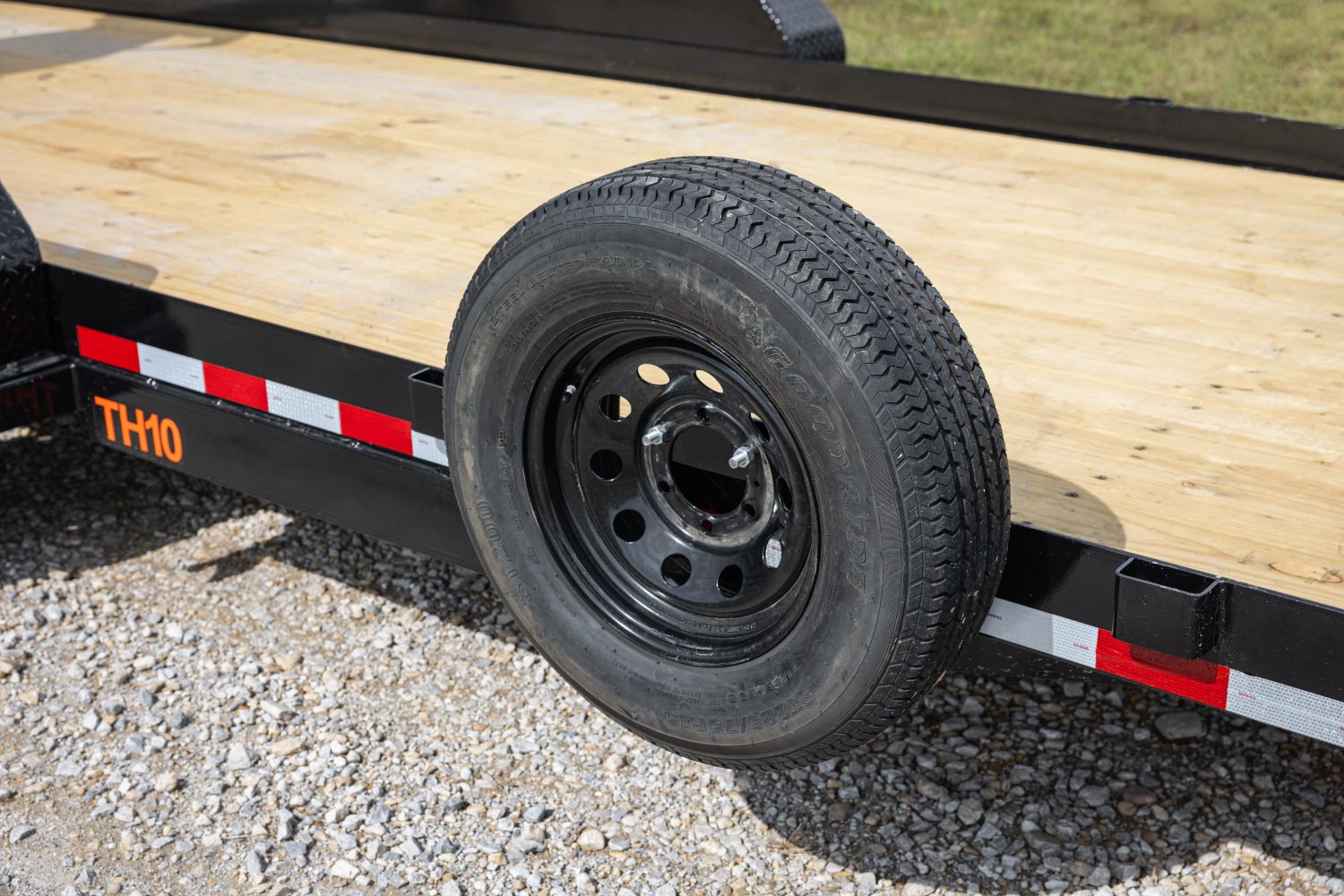

Tires ST225/75 R-15 Load Range D
Wheels 15” x 6”; White Mod, 6-Lug
Decking 2” Treated Pine
Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Sealed, Modular Wiring Harness
Ramps 4’ Slide-In Ramps (Side Pockets)
Cargo Control (8) Tie Down Pockets Along Sides
