TT16 |

Super Duty Tilt Bed Equipment Trailer

TT16

TT16 Learn More +
Super Duty Tilt Bed Equipment Trailer
Length 20′ 22′
Width 83″ 83″
GVWR Rating 17,500# 17,500#
Empty Weight 4,880# 4,940#
Payload Weight 12,620# 12,560#

TT16 Full Specs

Length 20′ | 22′
Width 83”
GVWR Rating 17,500#
Empty Weight 4,880# | 4,940#
Payload Weight 12,620# | 12,560#
Frame 8″ Channel
Cross Members 3″ Channel on 16″ Centers
Front Stop Rail 3/16″ Fabricated Front Stop Rail

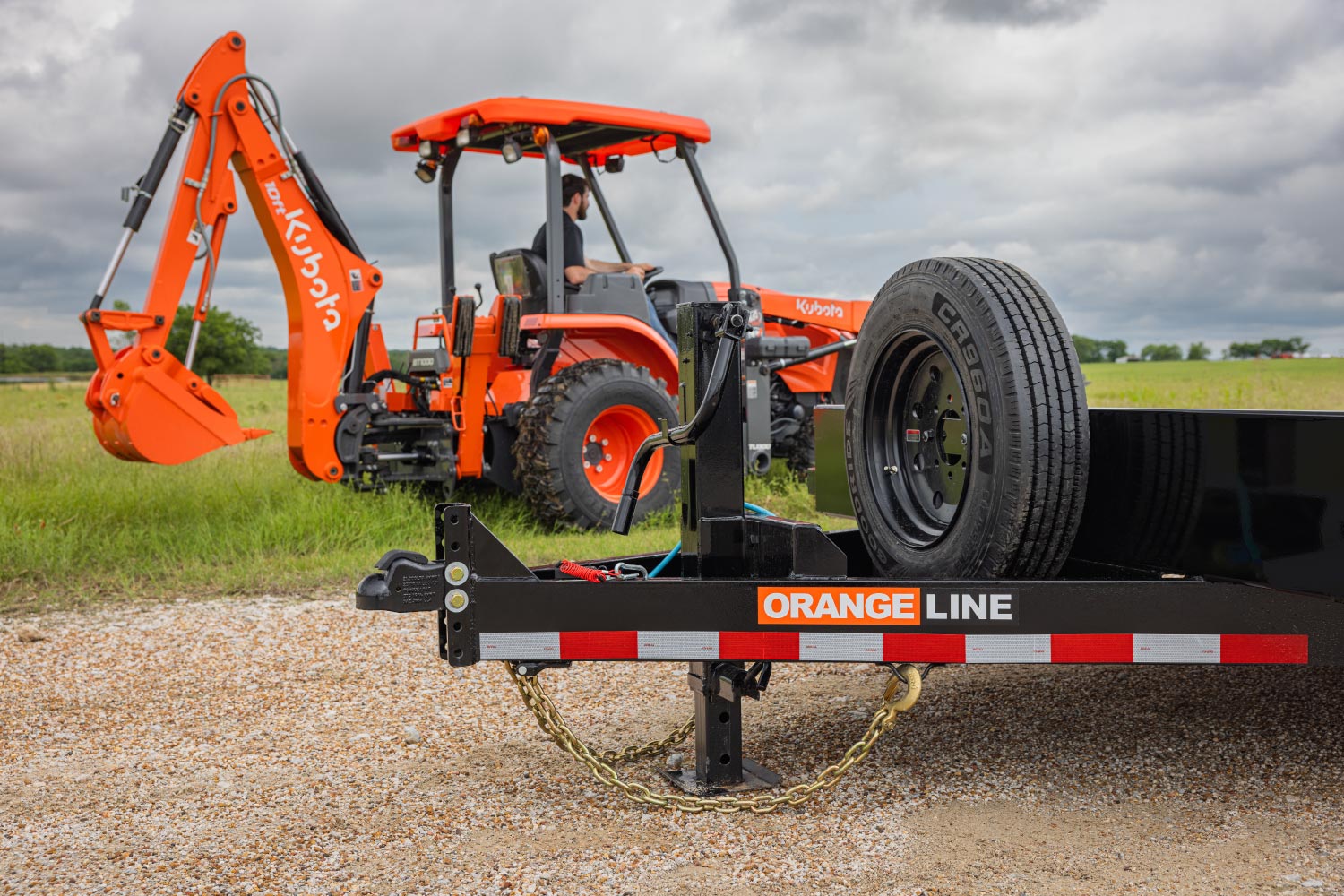

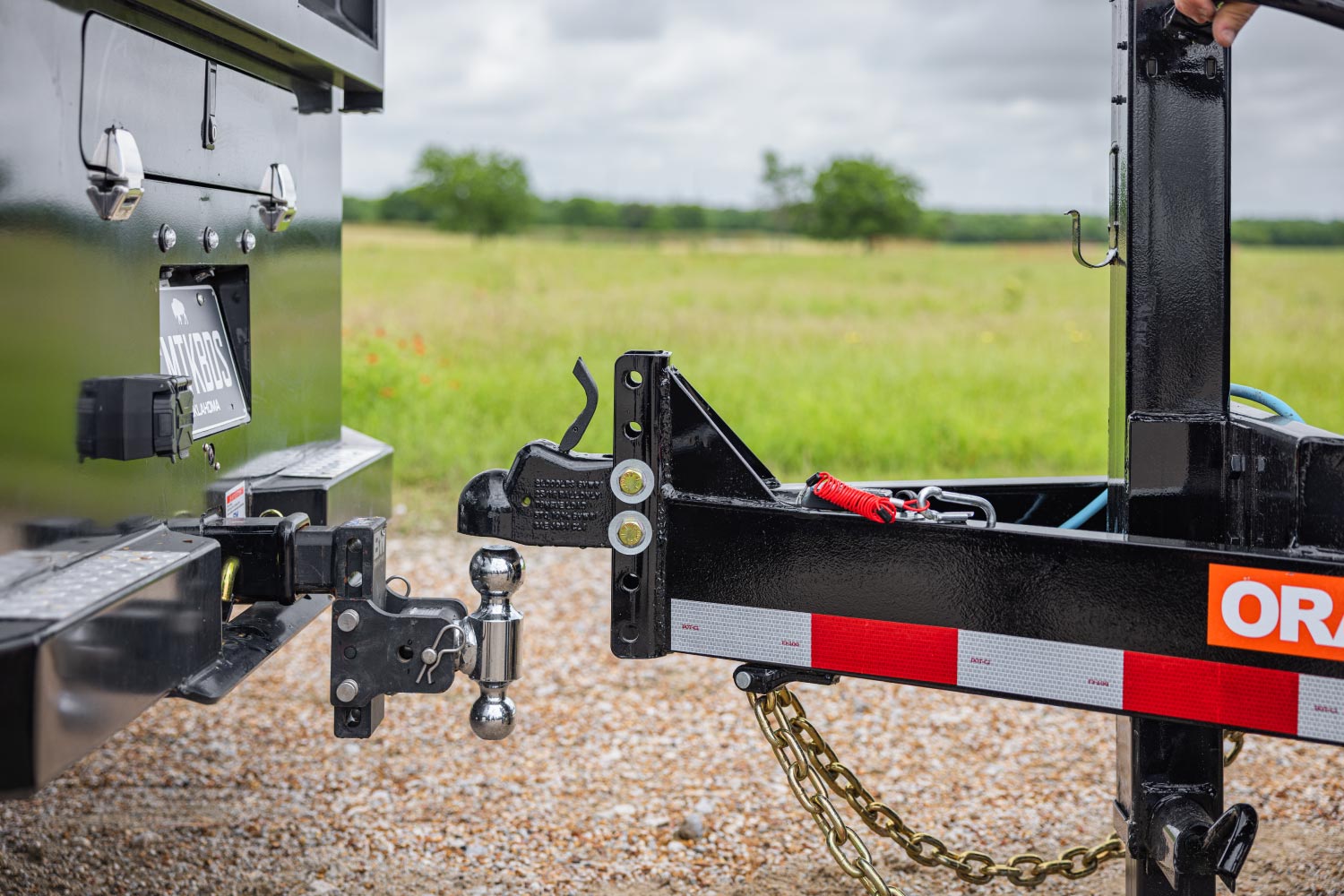

Coupler Adjustable 2-5/16″ 18,000# Demco EZ Latch
Jack 12,000# Drop Leg Jack-Side Wind
Fenders 9″ x 72″ 14 Ga. Diamond Plate Double Square Broke w/Back
Axles (2) 8,000# Drop Axle, Oil Bath
Brakes Forward Self-Adjusting Electric Brakes on All Hubs
Suspension Torsion
Tires ST215/75 R-17.5 Load Range H
Wheels 17.5” x 6.75”; Black Mod, 8 Bolt
Decking 2” Treated Pine
Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Sealed, Modular Wiring Harness

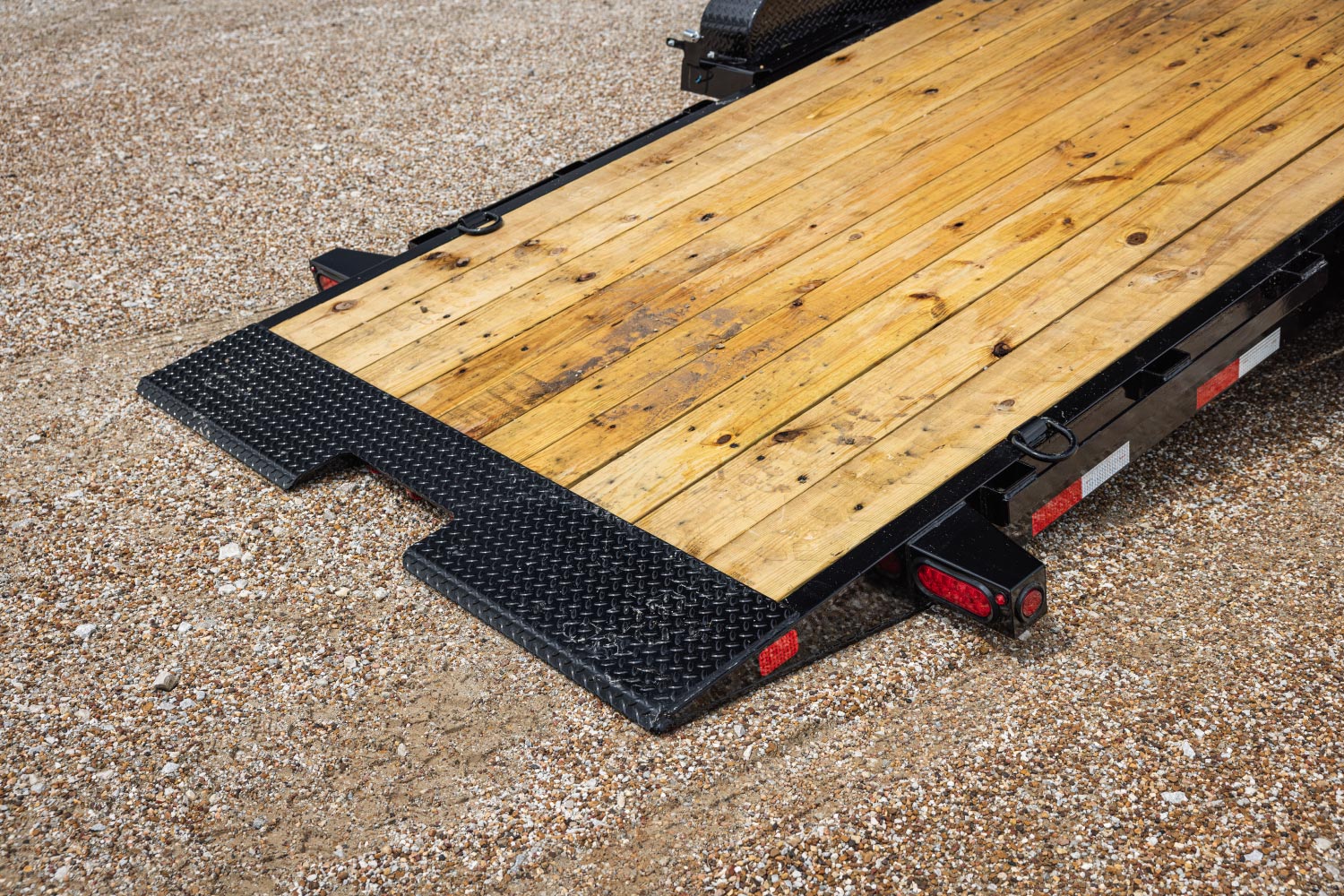

Tilt Platform 75″ Wide w/ 1/4″ Diamond Plate Knife Edge on Rear
Cargo Control (6) D-Rings to Secure Equipment
