TU14 |

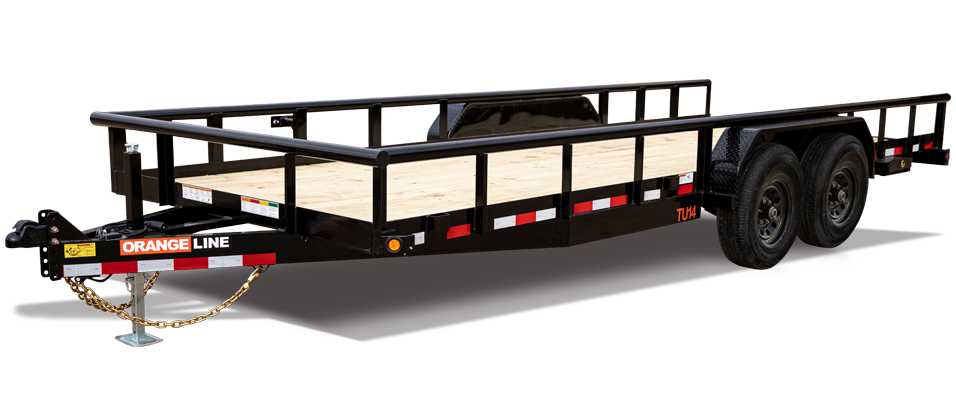

Heavy-Duty Tandem Axle, Pipe Top Utility Trailer

TU14

OrangeLine TU14
TU14 Learn More +
Heavy-Duty Tandem Axle, Pipe Top Utility Trailer
Length 20′
Width 83″
GVWR Rating 14,000#
Empty Weight 3,040#
Payload Weight 10,960#
Length 20′
Width 83”
GVWR Rating 14,000#
Empty Weight 3,040#
Payload Weight 10,960#
Frame 5” x 3” x 5/16” Angle
Cross Members 3” Channel

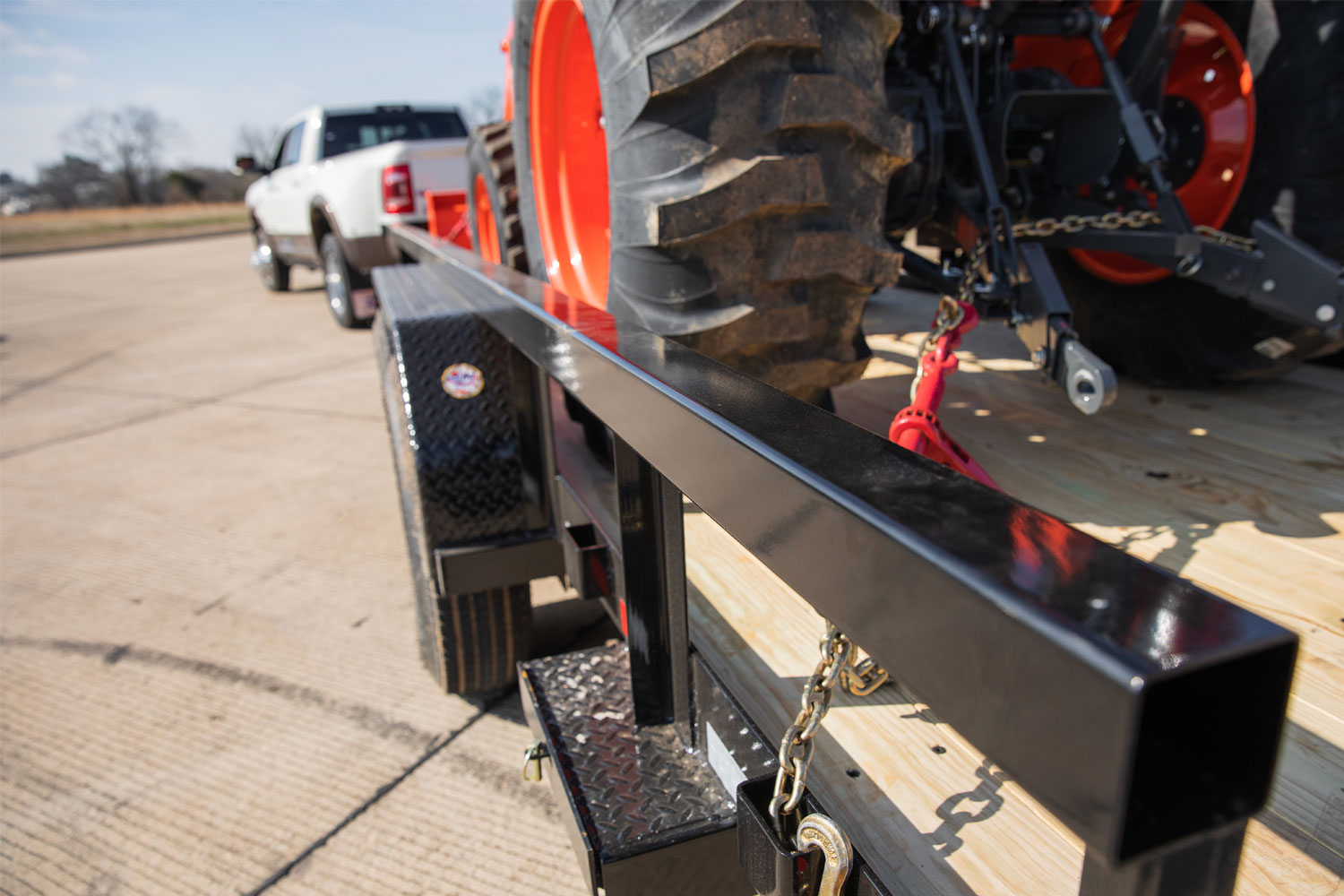

Top Rail 2-7/8″ OD Pipe Top Rail
Uprights 3″ x 2″ x 3/16″ Angle

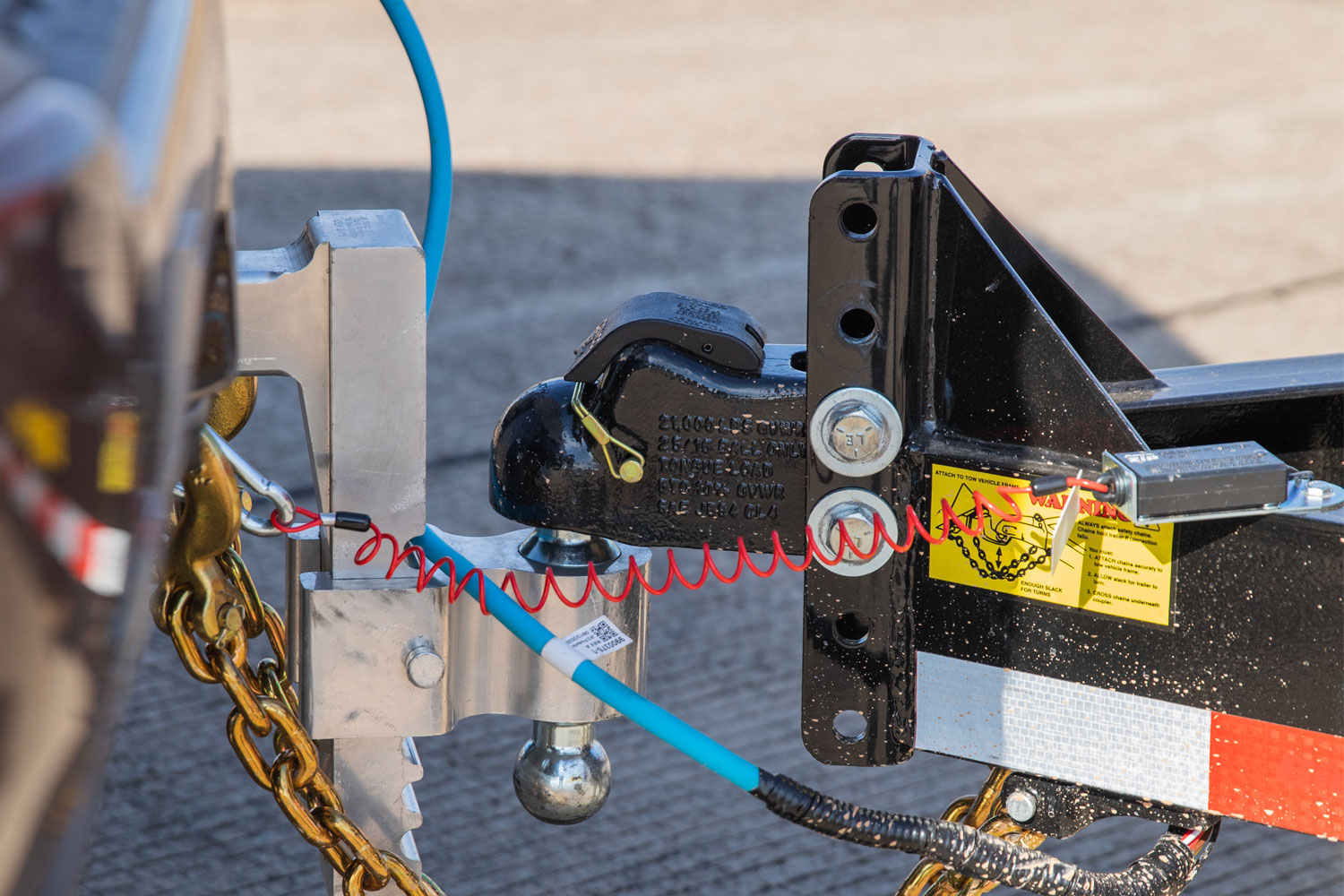

Coupler Adjustable, 2-5/16″ Demco EZ Latch Coupler
Jack 8,000# Top Wind, Set-Back Jack w/ Drop Leg
Fenders 9” x 72” Double-Broke Diamond Plate Steel
Axles 7,000# Axles w/ EZ Lube Hubs
Brakes Electric Brakes on All Hubs
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Tires ST235/80R-15 Load Range E
Wheels 16” x 6”; White Mod, 8-Lug
Decking 2” Treated Pine
Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Protected Wiring Package

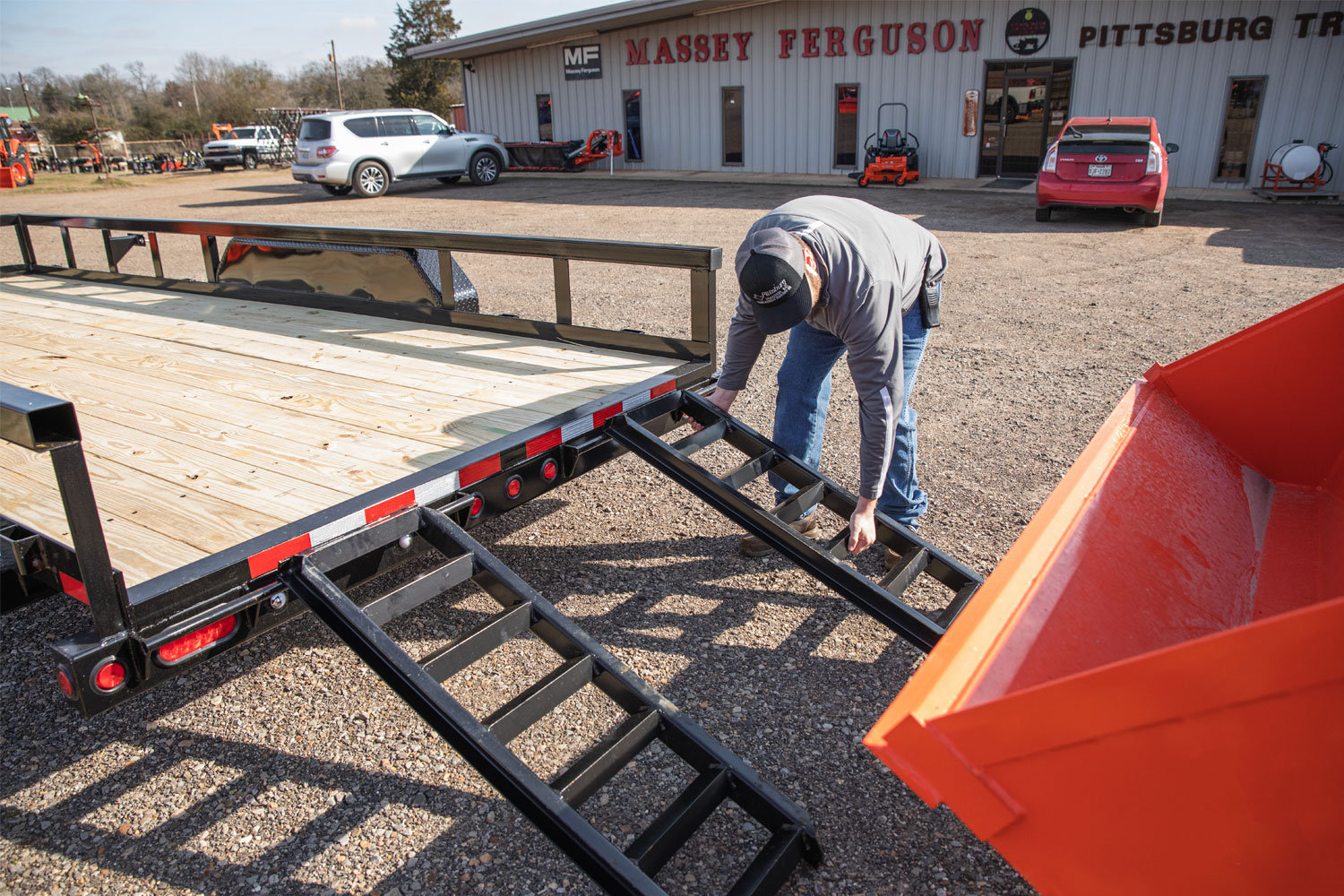

Ramps 4’ Slide-In Ramps (Side Pockets)
Cargo Control (6) Tie Down Pockets Along Sides
