TU60 |

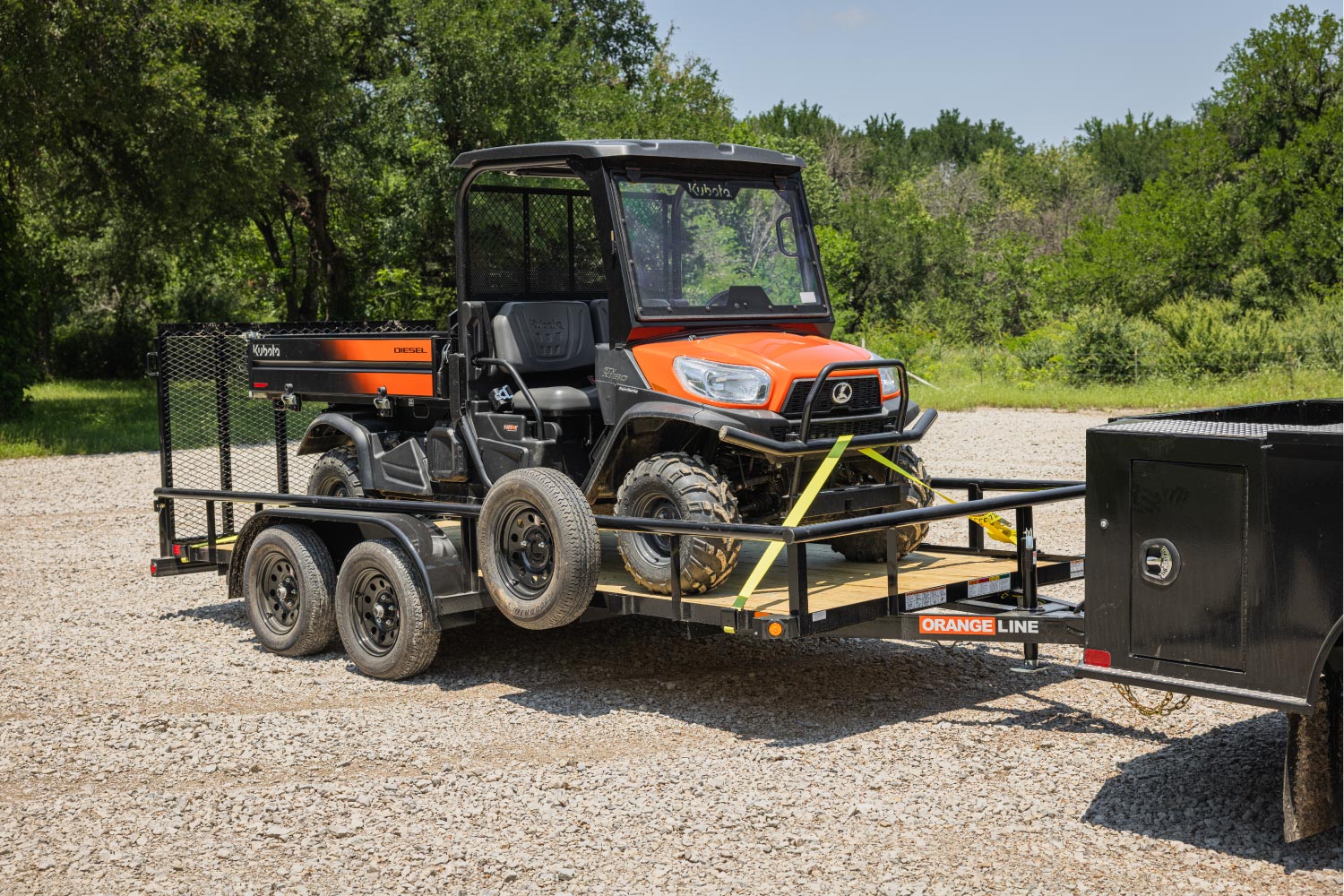

Tandem-Axle, Pipe Top Utility Trailer
| Length | 16′ |
| Width | 77” |
| GVWR Rating | 6,000# |
| Empty Weight | 1,630# |
| Payload Weight | 4,370# |
| Frame | 3” x 2” x 3/16” Angle |
| Cross Members | 3” x 2” x 3/16” Angle |
| Top Rail | 2-3/8″ OD Pipe Top Rail |
| Uprights | 2” x 2” Angle |

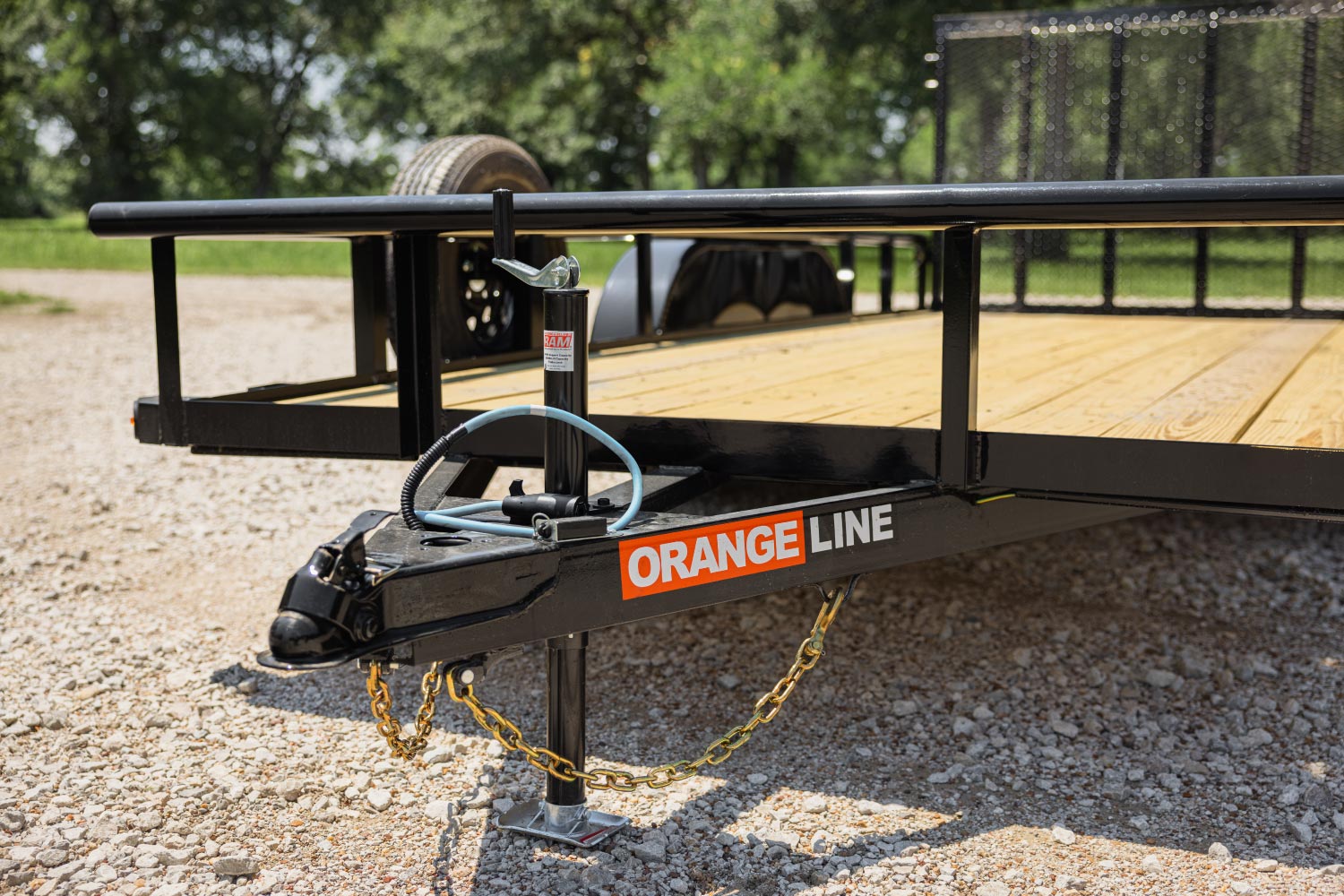

| Coupler | 2” A-Frame |
| Jack | 2,000# Top Wind, Set-Back Jack w/ Removable Sand Foot |
| Fenders | 9” x 72” Rolled Steel w/ Back |
| Axles | Dexter Brand, 3,500# Axles w/ EZ Lube Hubs |
| Brakes | Nev-R-Adjust Electric Brakes on All Hubs |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Tires | ST205/75R-15 Load Range C |
| Wheels | 15” x 5”; White Mod, 5 on 5 Bolt Pattern |
| Decking | 2” Treated Pine |
| Lights | Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Electric Plug | 7-Way RV Style |
| Wiring | Protected Wiring Package |
| Ramps | 4’ Slide-In Ramps (Side Pockets) |
| Cargo Control | (6) Tie Down Pockets Along Sides |
