TU70 |

Tandem-Axle, Pipe Top Utility Trailer

TU70

OrangeLine TU70
TU70 Learn More +
Tandem Axle Pipe Top Utility Trailer
Lengthes 18′ 20′
Widths 83″ 83″
GVWR Ratings 7,000# 7,000#
Empty Weights 2,060# 2,140#
Payload Weights 4,940# 4,860#
Length 18’ | 20’
Width 83”
GVWR Rating 7,000#
Empty Weight 2,060# | 2,140#
Payload Weight 4,940# | 4,860#
Frame 4” x 3” x 1/4” Angle
Cross Members 3” x 2” x 3/16” Angle
Top Rail 2-3/8″ OD Pipe Top Rail
Uprights 3″ x 2″ x 3/16″ Angle

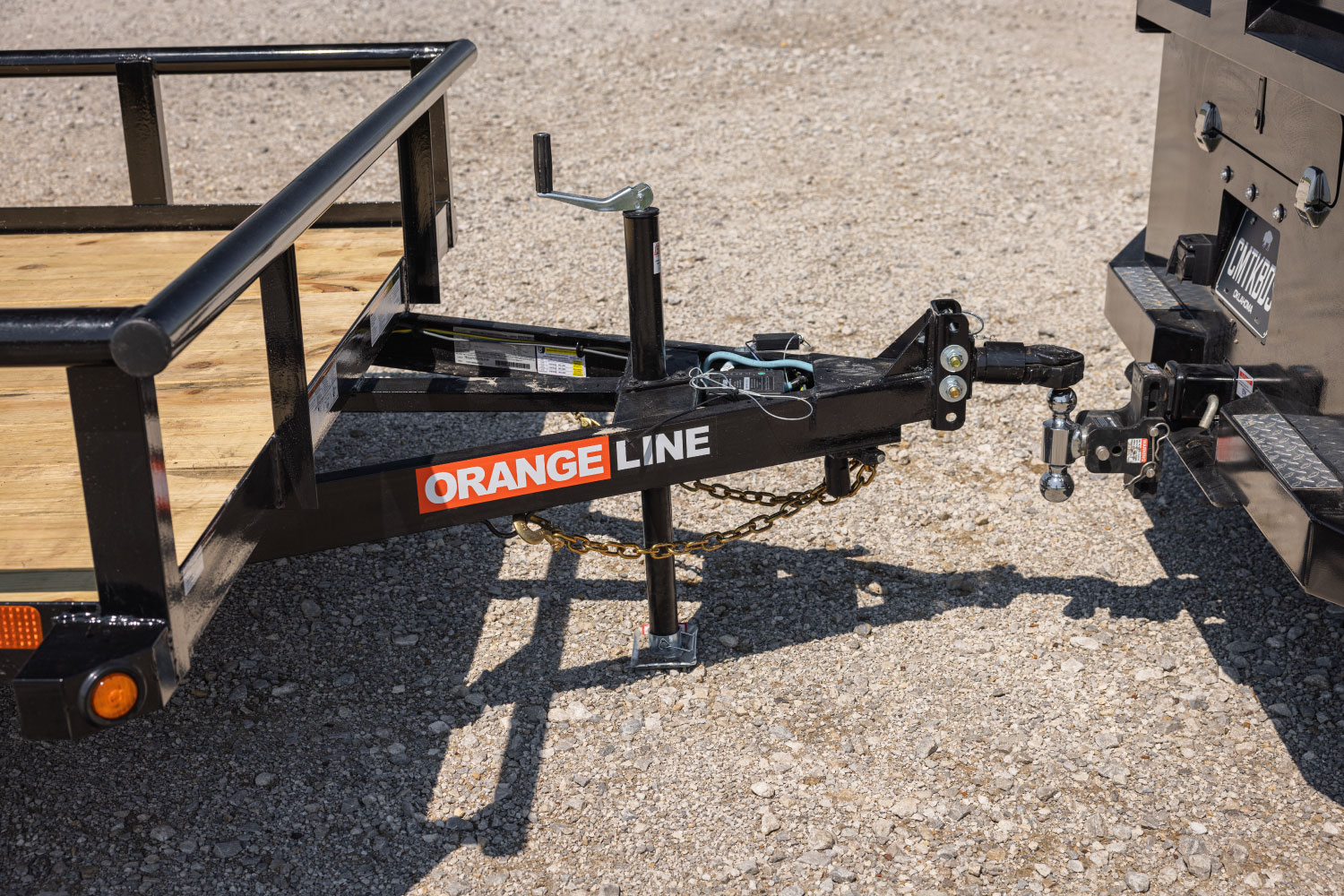

Coupler Adjustable, 2″ Forged Coupler
Jack 2,000# Top Wind, Set-Back Jack w/ Removable Sand Foot
Fenders 9” x 72” Rolled Steel w/ Back
Axles Dexter Brand, 3,500# Axles w/ EZ Lube Hubs
Brakes Nev-R-Adjust Electric Brakes on All Hubs
Suspension Multi-Leaf Spring w/ Equalizer
Tires ST205/75R-15 Load Range C
Wheels 15” x 5”; White Mod, 5 on 5 Bolt Pattern
Decking 2” Treated Pine

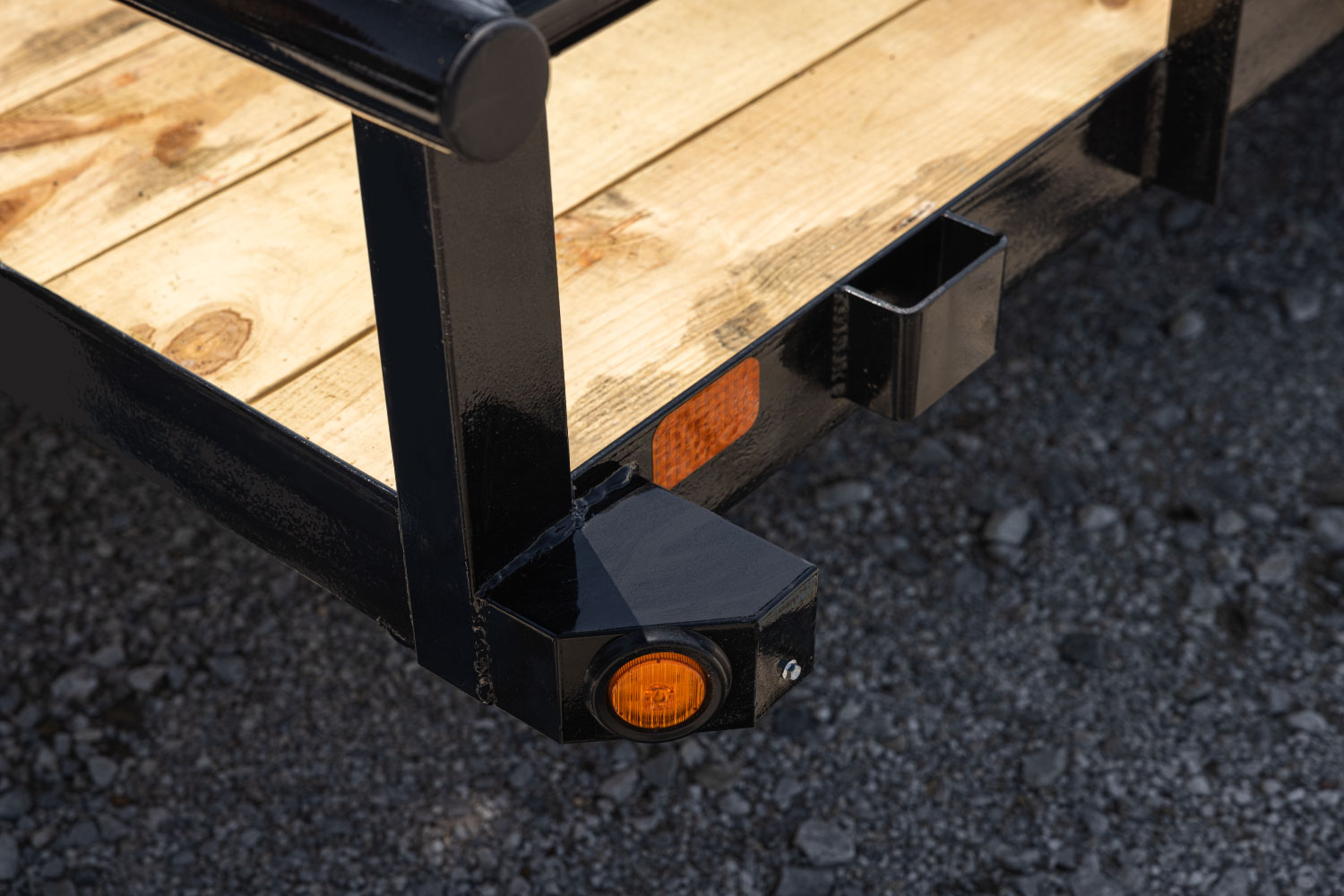

Lights Recessed, L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Electric Plug 7-Way RV Style
Wiring Protected Wiring Package
Ramps 4’ Slide-In Ramps (Side Pockets)
Cargo Control (6) Tie Down Pockets Along Sides
